multiblade block cutter

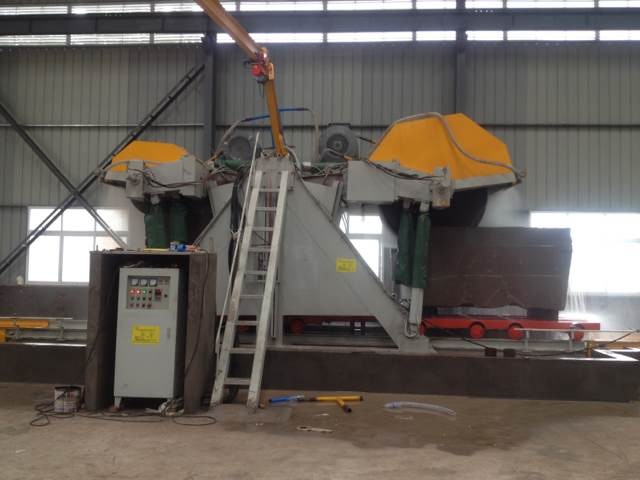

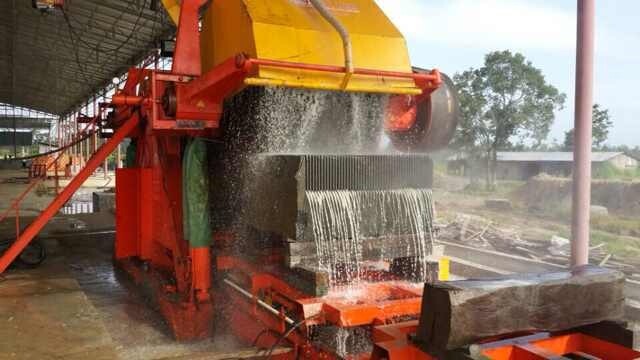

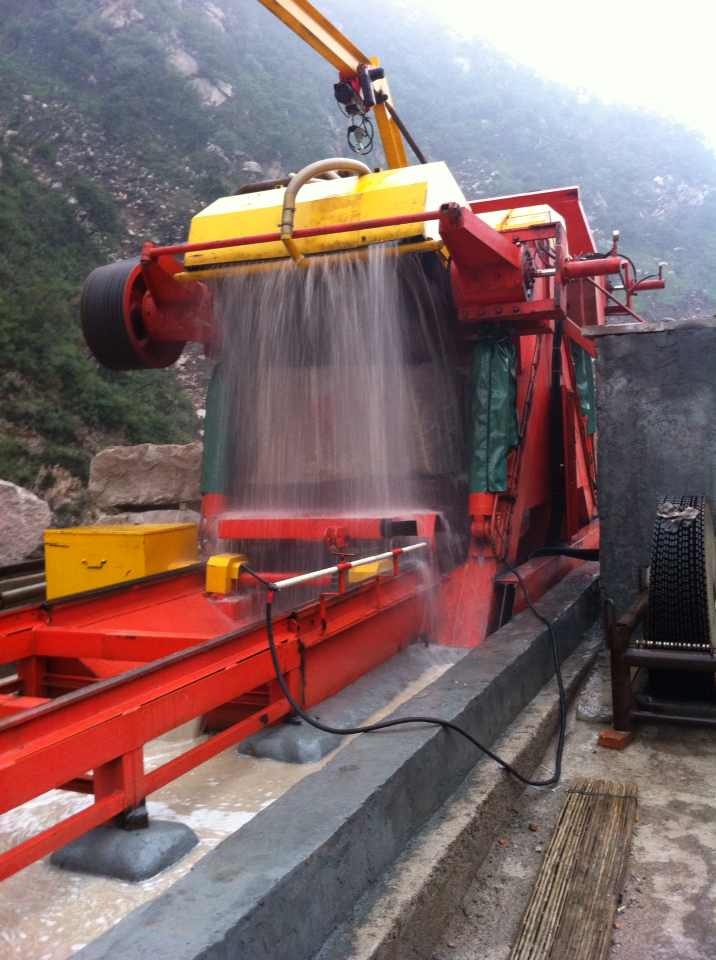

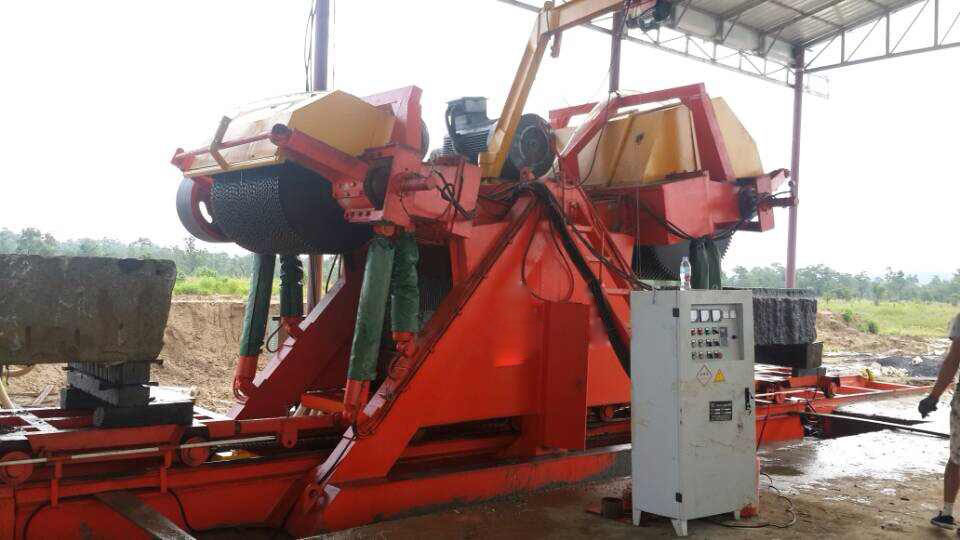

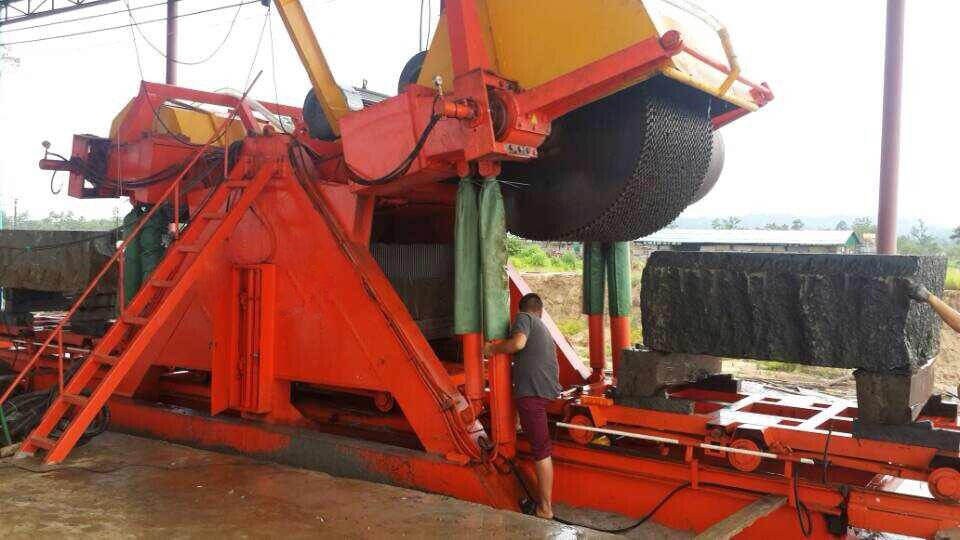

Assembly line cutting machine
- 【Name】Assembly line cutting machine
- 【Model】
- 【Category】multiblade block cutter
- 【Company】DAFON Machinery
- 【Clicks】129321
- 【Time】2020-06-12 10:12:06
Functional properties:
1, overall length:17 meters,3 meters wide, the saw blade shaft is long 1.3 meters, can hold 40small and 40large saw blade motor for small saw blade saw blade130KW,160KW.
2,3a trolley line cutting and greatly improve the production efficiency, according to stone with different hardness, normal cut blocks only need hair 45-50minutes, Nissan2.5 cm board 800square feet.
3, coaxial size saw machine compared to greatly improve the yield ( saw blade plate number ), save electricity, artificial cost and the cutter head costs ( solve coaxial synchronization shortcomings), high smoothness ( saw blade plate number under the knife less good flatness, polished cost savings could be 0.25yuan / m2).
Technical parameters of Technical Data
1, overall length:17 meters,3 meters wide, the saw blade shaft is long 1.3 meters, can hold 40small and 40large saw blade motor for small saw blade saw blade130KW,160KW.
2,3a trolley line cutting and greatly improve the production efficiency, according to stone with different hardness, normal cut blocks only need hair 45-50minutes, Nissan2.5 cm board 800square feet.
3, coaxial size saw machine compared to greatly improve the yield ( saw blade plate number ), save electricity, artificial cost and the cutter head costs ( solve coaxial synchronization shortcomings), high smoothness ( saw blade plate number under the knife less good flatness, polished cost savings could be 0.25yuan / m2).
Technical parameters of Technical Data
| Max saw blade diameter ( mm ) | 980-1650 | |
| Use at most saw the number | 40 pieces of *2 | |
| Maximum lifting stroke ( mm ) | 600/1000 | |
| Max processing size ( mm ) | 3000*1300*700/3000*1300*1000 | |
| Water consumption | of 40 cubic meters / hour | |
| Water consumption Motor power | 130KW、160KW | |
| Machine weight ( T ) | 36 | |
