Edge cutting machine

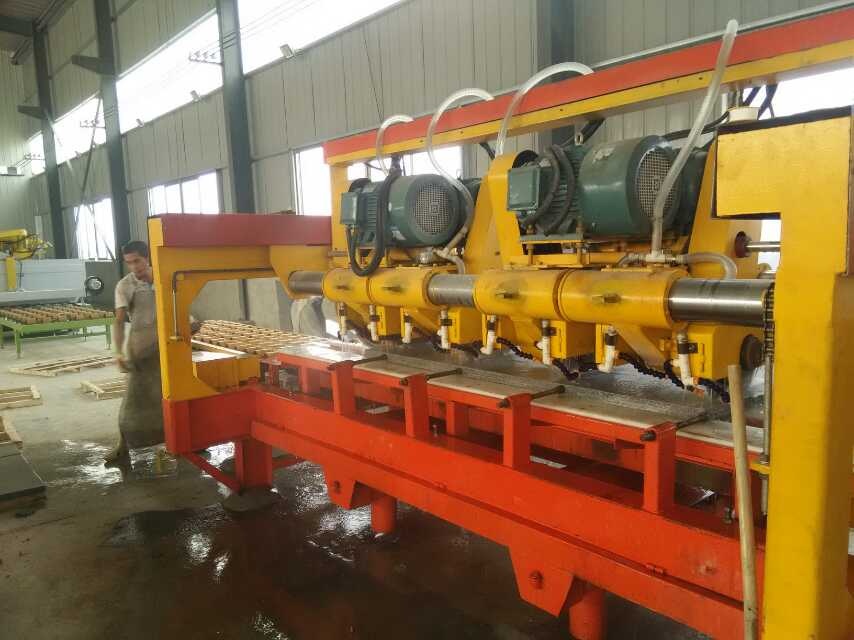

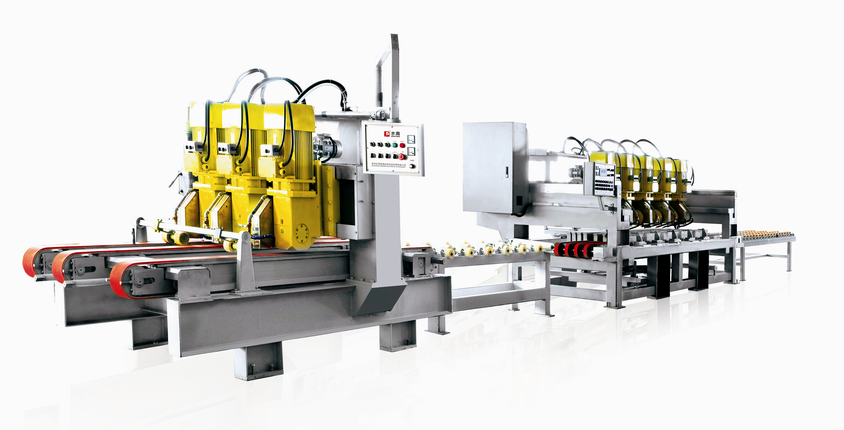

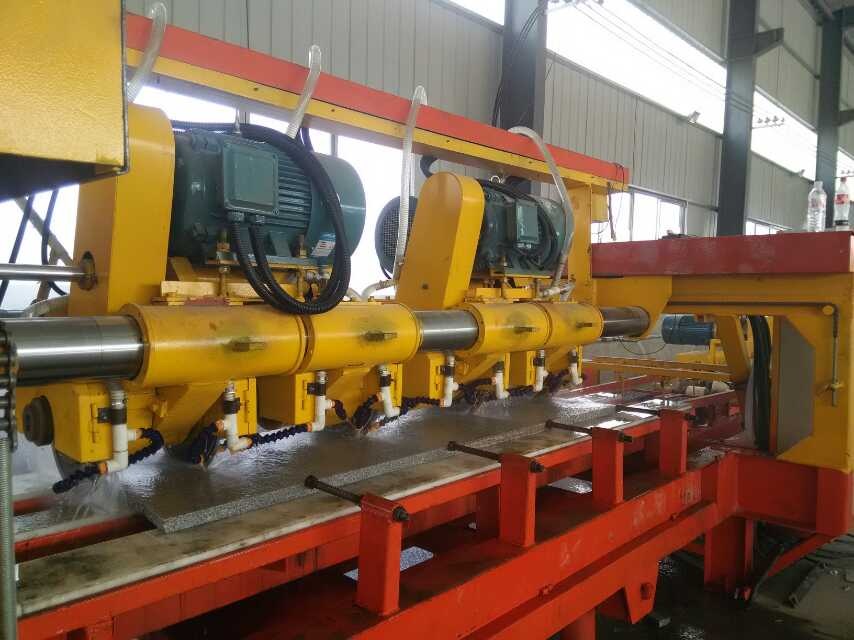

Full-automatic edge cutting machine
- 【Name】 Full-automatic edge cutting machine
- 【Model】
- 【Category】Edge cutting machine series
- 【Company】DAFON Machinery
- 【Clicks】3235
- 【Time】2020-06-12 10:07:29
Features:
1. Full-automatic edge-cutting machine, it is the integrated equipment of the edge-cutting machine, head-cutting machine, profiling unit.2. Use an asynchronous belt and roller drive to transport the sheet for cutting. When cutting the board, a limit switch is used to sense the position of the board, and 6 cylinders are used to position the board.
3. The main control box is realized by the inverter, transformer, AC contactor, time relay, and other main accessories to realize the automation of the machine, and effectively control the sheet conveying speed and positioning. Improve production efficiency and reduce labor costs.
Technical Data :
| Max saw blade diameter(mm) | 400 | |
| Number of saw blades(pcs) | 11 | |
| Max processing length(mm) | 2000 | |
| Cutting size(mm) | 1900*650*50 | |
| Cutting range(mm) | 300~1200 | |
| Weight(t) | 7 | |
